Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking

Name: Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking
Brand: Nanjing Peter Logistics Equipment Co., Ltd.
SKU: Medium Duty Rack
Price: 100.00 USD
Availability: InStock

Brand Name:	Peterack
Model Number:	Medium Duty Rack
MOQ:	20 pieces
Price:	$50~$150
Payment Terms:	T/T
Supply Ability:	20000kg/Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

Name:

Long Span Pallet Racking

Color:

Blue

Finish:

Powder Coated

Installation:

Bolt

Size:

Customizable

Usage:

Warehouse Storage

Layers:

2-6 Layers

Material:

Steel

Capacity:

500-2000kg Per Level

Type:

Selective

Width:

Customizable

Depth:

Customizable

Packaging Details:

Wooden pallet packing with wrap around film

Supply Ability:

20000kg/Month

Highlight:

Medium Duty Long Span Pallet Racking

Long Span Pallet Racking 5 Layer

Bolt Installation Garage Storage Racking

Product Description

Medium Duty Long Span Racking 5 Layer Longspan Garage Storage Bolt Racking

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 0

Medium Duty Rack

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 1

Product Name	Storage Racking	Style	Medium Duty Rack
Brand	Peterack	Colour	Blue,white,orange,green,etc.
Material	Steel	Place of Product	Jiangsu Province,China
Feature	Corrosion Protection, Assembly	Packing	Export Package
Size	Customizable	Application	Widely used in light industries

Medium duty shelves adopts plug-in combination structure, which is easy to install and disassemble. It can be equipped with steel and wood laminates with high floor height. Every 50mm can be adjusted, the width of the laminate can be freely combined, the unit can bear 200-600kg, and the specifications can be customized.

Features & Benefits

1) Upright section: 55*47 available
2) Adopt the structural form of combination of beams and decking
3) Can carry 200-600kg cross-sections with various specifications
4) Can be installed and removed freely
5) Each layer height can be adjusted, pitch: 50mm
6) Lightweight, strong bearing capacity and low cost

Detailed Images

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 1

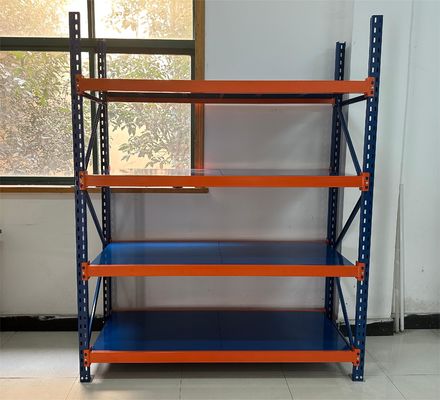

It is consisted of frames, beams and panel. The 55*47 Long span shelving can be decked with particle board, wire decking, Zinc steel panel, rolling metal decking to make them ideal for many different environments. Long-span shelving are especially suitable for the hand loaded storage of bulky items. Comparing with 55*55 shelving, as panels are put on the beams and with the same length and width, the loading capacity will be larger. It’s from 200kg to 600kg per level.

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 5

Medium Duty Racking

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 1

Specifiction (LDH)mm	Weight Capacity	Product code	Color	Remark
12005002000*4layer	600KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
12006002000*4layer	600KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
15005002000*4layer	400KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
15006002000*4layer	400KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
18005001800*4layer	300KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
18006001800*4layer	275KG/layer	W205	Blue/Grey	upright:55471.5mm beam:P50301.5mm
18006001800*4layer	500KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P60401.5mm
20005001800*4layer	200KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P50301.5mm
20005001800*4layer	400KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P60401.5mm
20006001800*4layer	200KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P50301.5mm
20006001800*4layer	400KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P60401.5mm
20006002000*4layer	200KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P50301.5mm
20006002000*4layer	400KG/layer	W205	Blue/Grey	upright:55471.5mm Beam:P60401.5mm

Customer Feedback

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 1

Exhibition

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 9

FAQ

Medium Duty Long Span Pallet Racking 5 Layer Bolt Installation Garage Storage Racking 1

1,Q: Are you a factory or trading company? A: We are manufacture. Our factory has been specializing in warehouse racks and different kinds of display stands for 15 years.

2,Q: Where is your factory located?
A: Our factory is located in Nanjing.

3,Q: What is your delivery time?
A: In general, within 20 days,but it also depends on the order quantity and shelves design

4,Q: What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.

5,Q: Could you produce according to customers’ design?
A: Sure, we have very rich experience in customizing shelves.

6,Q: Do you produce shelf with different kinds of materials? A: Yes,our products are mainly made of metal but we also produce accessory shelves or displays with wood,titanium alloy,acrylic,glass,etc.

7,Q: What are main rack and add on rack?
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack+ 9 add on racks.

8,Q: What is the manner of packing?
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients’ requirement.
