Pallet Storage Rack
Created with Pixso.

VNA Very Narrow Aisle Racking System High-Density Storage Solution

VNA Very Narrow Aisle Racking System High-Density Storage Solution

Brand Name: Peterack
Model Number: Multi-Level VNA
MOQ: 20 Sets
Price: USD$ 0.8-1.15/kilograms
Payment Terms: L/C,T/T
Supply Ability: 100 Sets 35 days
Detail Information
Place of Origin:
Jiangsu, China
Certification:
CE, ISO9001
Assembly:
Boltless Assembly
Customization:
Available
Height:
4 Feet
Assembly Required:
Yes
Layer:
5 Layer,
Use:
Industrial
Advantage:
High Storage Efficiency
Installation:
Bolted
Space Efficiency:
Maximizes Vertical Storage Space
Packaging Details:
Wooden pallet with wrap around film packing
Supply Ability:
100 Sets 35 days
Highlight:

High-Density Storage Solution

,

VNA Racking System

Product Description

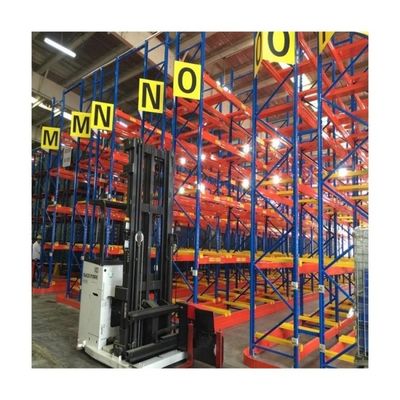

VNA Very Narrow Aisle Racking System High-Density Storage Solution 0


VNA (Very Narrow Aisle) Racking System | The High-Density Storage Solution


The VNA (Very Narrow Aisle) pallet racking system is an advanced high-density storage solution designed to maximize warehouse space utilization. It operates on a unit-load principle, where standardized pallets are handled by specialized forklifts, such as turret trucks or reach trucks. The defining feature of this system is its dramatically reduced forklift operating aisles, typically ranging from 1500mm to 2000mm in width. By minimizing non-storage aisle space, the system significantly increases storage density and overall warehouse capacity, making it an ideal choice for facilities with high-volume inventory and limited floor space.

Advantages of VNA pallet rack:
  • Maximized Storage Density: Achieves up to 60% more pallet positions by utilizing ultra-narrow aisles (~1.5m), ideal for high-value spaces.

  • Optimized Cubic Space: Makes full use of available building height (typically 12m+/40ft+), maximizing vertical storage.

  • Enhanced Capacity & ROI: Significantly increases SKU and pallet storage within the existing footprint, avoiding costly expansions and improving ROI.



Product Name
Storage Racking
Style
VNA Pallet Racking
Brand
Peterack
Colour
Blue,white,orange,green,etc.
Material
Steel
Place of Product
Jiangsu Province,China
Feature
Corrosion Protection
Packing
Export Package
Size
Customizable
Application
Widely used in heavy industries


Detalis Images

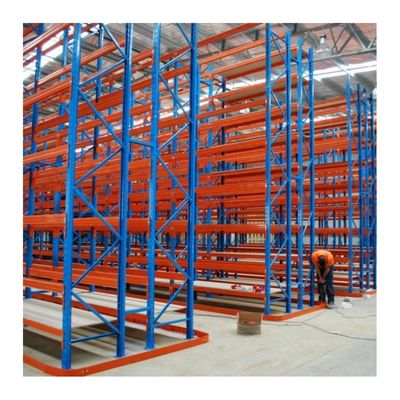

VNA Very Narrow Aisle Racking System High-Density Storage Solution 1

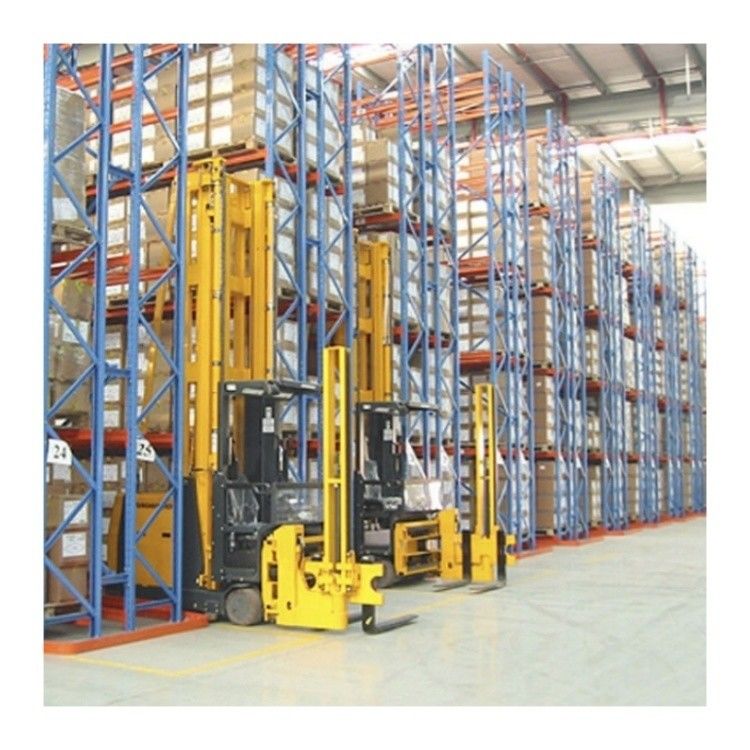

VNA Very Narrow Aisle Racking System High-Density Storage Solution 2

Upright Parameters
specification(mm) Thickness(mm) Loading(kg)
W80*D60 1.8-2.0 4000-6000
W85*D67 1.8-2.3 7500-12500
W90*D60 1.8-2.5 8000-10000
W90*D70 1.8-2.5 10000-12000
W100*D70 2.0-2.5 11000-14000
W120*D95 2.3-3.0 17000-21000

VNA Very Narrow Aisle Racking System High-Density Storage Solution 3

VNA Very Narrow Aisle Racking System High-Density Storage Solution 4

VNA Very Narrow Aisle Racking System High-Density Storage Solution 5

VNA Very Narrow Aisle Racking System High-Density Storage Solution 6

VNA Very Narrow Aisle Racking System High-Density Storage Solution 7

VNA Very Narrow Aisle Racking System High-Density Storage Solution 8

VNA Very Narrow Aisle Racking System High-Density Storage Solution 9

VNA Very Narrow Aisle Racking System High-Density Storage Solution 10

VNA Very Narrow Aisle Racking System High-Density Storage Solution 11

VNA Very Narrow Aisle Racking System High-Density Storage Solution 12
VNA Very Narrow Aisle Racking System High-Density Storage Solution 13

VNA Very Narrow Aisle Racking System High-Density Storage Solution 14

VNA Very Narrow Aisle Racking System High-Density Storage Solution 15
VNA Very Narrow Aisle Racking System High-Density Storage Solution 16

VNA Very Narrow Aisle Racking System High-Density Storage Solution 17

VNA Very Narrow Aisle Racking System High-Density Storage Solution 18

VNA Very Narrow Aisle Racking System High-Density Storage Solution 19

VNA Very Narrow Aisle Racking System High-Density Storage Solution 20
FAQ

VNA Very Narrow Aisle Racking System High-Density Storage Solution 1

1. Q: Are you a factory or trading company?
A: We operate as a direct manufacturer with over 15 years of specialized experience in producing warehouse racking systems and various types of display stands.

2. Q: Where is your factory located?
A: Our production facility is based in Nanjing, China.

3. Q: What is your delivery time?
A: Our standard lead time is within 20 working days. However, the exact timeframe may vary depending on the total order quantity and specific design requirements.

4. Q: What is your accepted trade term?
A: We typically quote with EXW or FOB terms, but other trade terms are also negotiable based on customer needs.

5. Q: Can you produce according to customer designs?
A: Yes, we offer comprehensive customization services and have extensive experience in manufacturing shelves based on client-provided designs.

6. Q: Do you work with different materials for your shelves?
A: While our primary material is metal, we are also experienced in incorporating other materials such as wood, titanium alloy, acrylic, and glass for specific components or display solutions.

7. Q: What is the difference between a main rack and an add-on rack?
A: The key difference lies in the upright frame structure. A main rack serves as the starting unit and includes two uprights, while an add-on rack is an extension unit that connects to the main rack and requires only one upright. For instance, a 10-bay run against a wall would consist of 1 main rack plus 9 add-on racks.

8. Q: What is your standard packing method?
A: Our standard packing involves flat-packing the shelves with protective materials such as air bubble film or stretch wrap, then securing them in export-grade cartons. We can also accommodate special packaging requests, such as wooden crates, upon customer requirement.
