Teardrop Selective Pallet Racking 4000kg Per Level Toolless Assembly 50mm Beam Pitch Adjustment

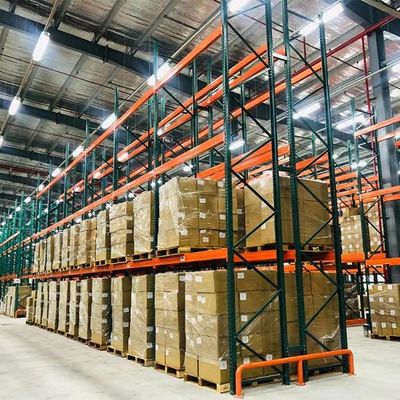

Teardrop Selective Pallet Racking — Tool-less Assembly and 100% Pallet Access

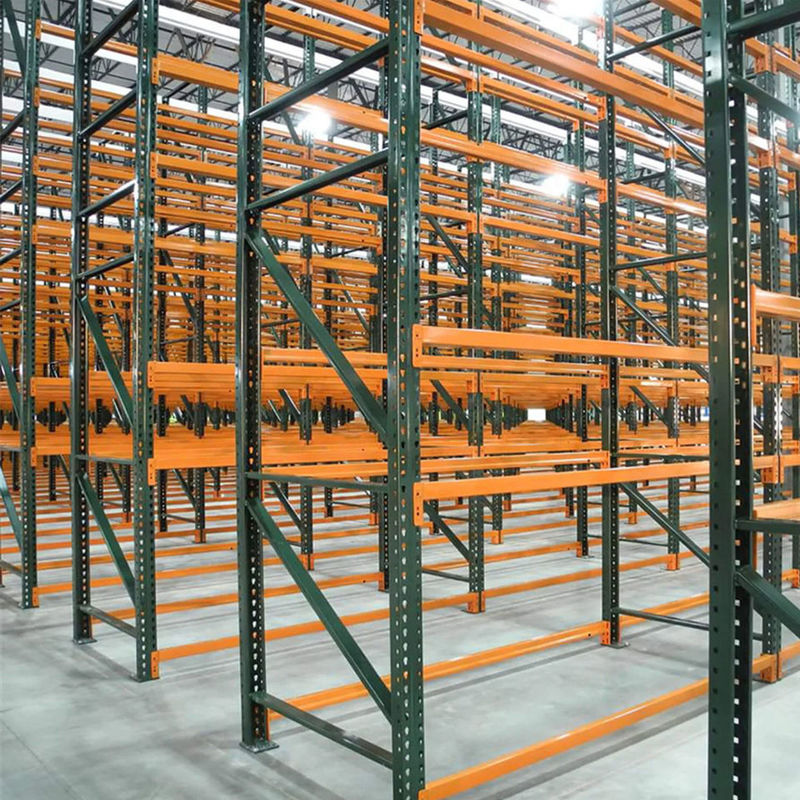

This selective pallet racking system is designed for warehouses that reconfigure layouts often and need fast installation without specialist labour. Beams snap into teardrop punched holes with SP and SL safety locks, every pallet position stays directly accessible, and shelf levels move in 50 mm or 75 mm steps when SKU heights change.

1. Regular Hole Design — Slide-in Teardrop Punched Holes

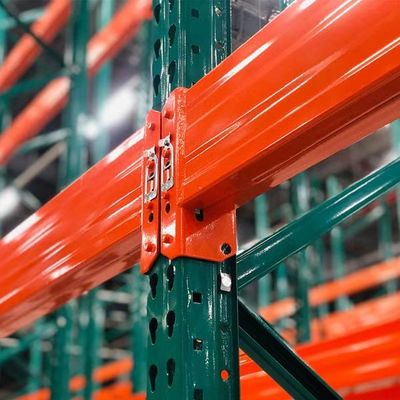

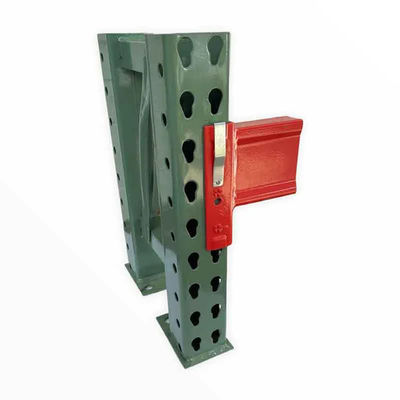

Slide-in teardrop punched holes lock beams to uprights quickly, enabling fast tool-less assembly and cutting installation time by 30%. The teardrop profile keeps the beam connector captive while it slides down into the lock position, so a level cannot be dropped during installation.

2. Fast Tool-less Assembly

No special tools needed. Beams snap into place with SP and SL safety locks for rapid setup and easy repositioning without lift trucks. A two-person crew can build a standard bay on site, which matters for export shipments where installation is done by the end user or a local contractor.

3. 100% Pallet Accessibility and FIFO

Every pallet is directly accessible; selective racking supports FIFO inventory management for fast-moving goods. Nothing is blocked by a neighbouring pallet, so pickers work from the aisle and stock rotation follows arrival date rather than storage depth.

4. Adjustable Beam Height

Beams adjust in 2 inch (50 mm / 75 mm) increments for quick reconfiguration of shelf levels. Seasonal SKU changes are handled by moving beams up or down on the same uprights, with no cutting, welding or new frames.

5. Modular and Customizable

Frames, beams, wire mesh decking and steel panel decks are modular and interchangeable. Bay width, depth, height, number of levels, decking type and colour are all customizable, and runs can be extended or split as the warehouse layout evolves.

6. Heavy Duty Load Capacity

Each level supports 4,000-5,000 kg with Q235B/Q355B cold-rolled steel for long-term stability. The tool-less connection does not come at the cost of strength: beam endplates and locking pins are sized for the rated load of the bay.

7. Q235B / Q355B Cold-Rolled Steel

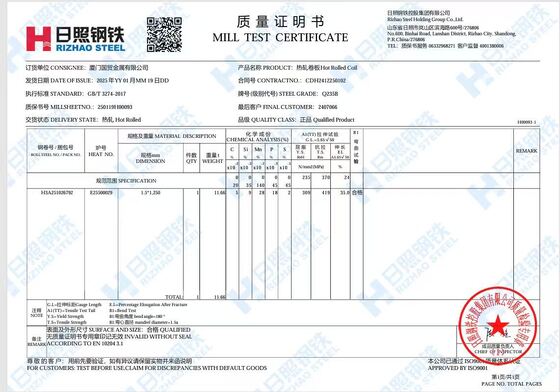

Uprights and beams use Q235B/Q355B cold-rolled steel, resisting deformation with up to 5,000 kg per position. Cold-rolled sections give consistent wall thickness, which keeps the teardrop punches accurate and the connectors tight over years of use.

8. Galvanized and Powder Coating

Hot-dip galvanized or powder-coated dual treatment resists corrosion and extends service life by up to 40%. Powder coating is available in RAL colours for distributor branding, while galvanized finish suits humid, cold-room and outdoor-covered installations.

Technical Specifications

Installation Sequence

1. Position the upright frames at the specified bay centres and check plumb
2. Insert the first beam into the teardrop holes at the lowest level

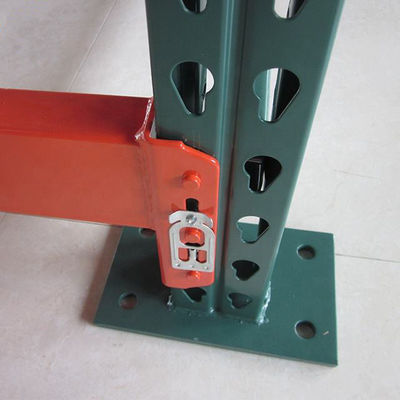

3. Press the SP/SL safety lock down until it clicks
4. Repeat level by level from the bottom up
5. Lay wire mesh decking or steel panels and verify level height

Why Buyers Choose This Model

Because installation speed and layout flexibility directly reduce project cost. A racking system that assembles without tools, re-levels in 50 mm steps and keeps 100% of pallets accessible lets a distributor resell the same frames into different end-user layouts — instead of holding dead stock for one fixed configuration.
