Blue AS/RS System Upright Column Steel Automated Racking Solutions

Blue AS/RS System Upright Column Steel Automated Racking Solutions

Brand Name:	Peterack
Model Number:	BD-ASRS
MOQ:	10000 kilograms
Price:	$9.25 kilograms 10000-49999
Payment Terms:	T/T
Supply Ability:	20000KG/Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu,China

Certification:

Features:

Adjustable, Easy To Install, Durable

Name:

Automated Racking Solutions

Usage:

Warehouse Storage

Surface Treatment:

Powder Coated/Galvanized

Material:

Steel

Column Type:

Upright Column

Color:

Blue/Orange/Grey

Max Height:

12/24 Meters;customized

Packaging Details:

Carton packaging; Wooden pallets with wrapping film for bundling

Supply Ability:

20000KG/Month

Highlight:

Blue AS/RS System

Steel Automated Racking Solutions

Upright Column Automated Racking Solutions

Product Description

Nanjing Peterack Save Labor Cost 60% Warehouse Automatic Racking Systems ASRS

AS/RS System

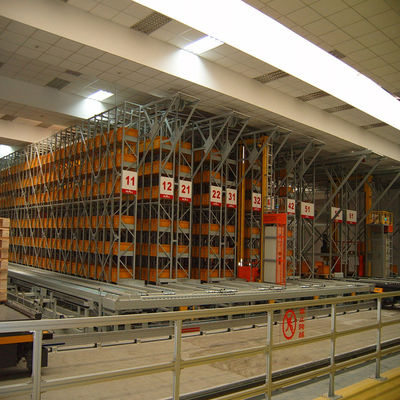

Blue AS/RS System Upright Column Steel Automated Racking Solutions 1

Advantages:
Peter series double-column stacker crane is used to handle pallet materials, suitable for pallet storage systems under 1500kg Automatic Stacker Crane Racking System ASRS Steel Pipe Auto Storageretrieval System for ASRS Systems Automatic Stacker Crane Racking System ASRS Steel Pipe Auto Storageretrieval System for ASRS Systems
and 25m. The operating speed of the equipment can reach 240m/min and the acceleration is 0.6m/s2, which can meet the operating
environment requirements of continuous high throughput.
* Models: Single-deep and multi-deep models are available
* Pallet weights up to 1500 kg.
* Variable frequency drive motor (IE2), running smoothly.
* Fork units can be customized to handle a variety of loads.
* Models with a height of more than 30 meters can be customized according to requirements.
* The minimum height of the first floor: 700mm (single deep), 800mm (double deep); when the total height of the stacker crane is
within 8 meters, 650mm (single deep), 750mm (double deep).

Details Images

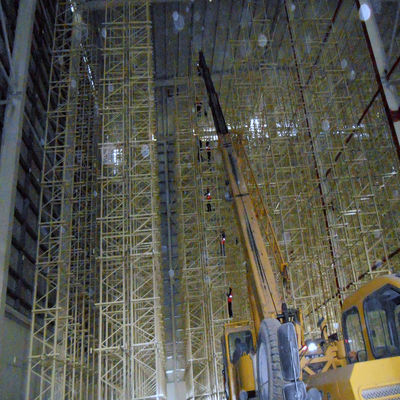

Blue AS/RS System Upright Column Steel Automated Racking Solutions 2

Name	Code	Standard value (mm) (detailed data is determined according to the project situation)
Cargo width	W	400≤W≤2000
Cargo depth	D	500≤D≤2000
Cargo height	H	100≤H≤2000
Total height	GH	5000＜GH≤24000
Top ground rail end length	F1, F2	Confirm according to the specific plan
Outer width of stacker	A1, A2	Confirm according to the specific plan
Stacker distance from the end	A3, A4	Confirm according to the specific plan
Buffer safety distance	A5	A5≥300 (polyurethane), A5≥100 (hydraulic buffer)
Buffer stroke	PM	PM≥150 (polyurethane), specific calculation (hydraulic buffer)
Cargo platform safety distance	A6	≥165
Ground rail end length	B1, B2	Confirm according to the specific plan
Stacker wheel distance	M	M=W+2700(W≥1300), M=4000(W＜1300)
Ground rail offset	S1	Confirm according to the specific plan
Top rail offset	S2	Confirm according to the specific plan
Pickup Itinerary	S3	≤3000
Bumper width	W1	450
Aisle width	W2	D+200(D≥1300), 1500(D＜1300)
First floor height	H1	Single deep H1≥700, double deep H1≥800
Top level height	H2	H2≥H+675(H≥1130), H2≥1800(H＜1130)

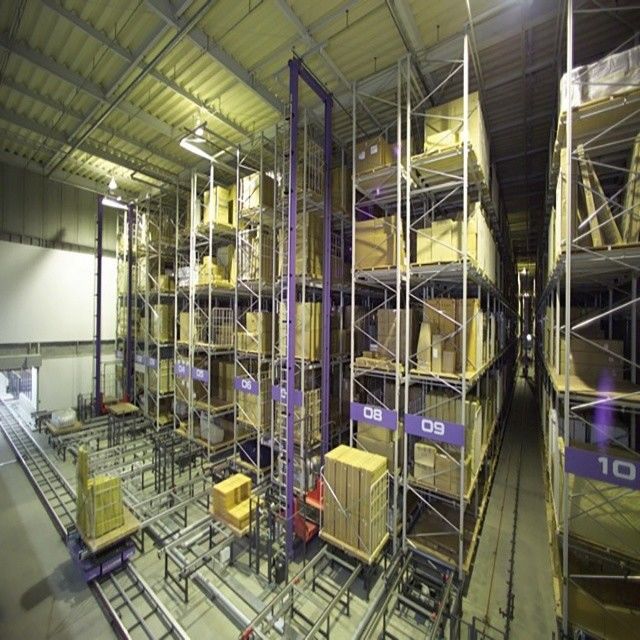

Blue AS/RS System Upright Column Steel Automated Racking Solutions 3

Customer Feedback

Blue AS/RS System Upright Column Steel Automated Racking Solutions 1

Exhibition

Blue AS/RS System Upright Column Steel Automated Racking Solutions 1

FAQ

Blue AS/RS System Upright Column Steel Automated Racking Solutions 1

1,Q: Are you a factory or trading company? A: We are manufacture. Our factory has been specializing in warehouse racks and different kinds of display stands for 15 years.

2,Q: Where is your factory located?
A: Our factory is located in Nanjing.

3,Q: What is your delivery time?
A: In general, within 20 days,but it also depends on the order quantity and shelves design

4,Q: What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.

5,Q: Could you produce according to customers’ design?
A: Sure, we have very rich experience in customizing shelves.

6,Q: Do you produce shelf with different kinds of materials? A: Yes,our products are mainly made of metal but we also produce accessory shelves or displays with wood,titanium alloy,acrylic,glass,etc.

7,Q: What are main rack and add on rack?
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack+ 9 add on racks.

8,Q: What is the manner of packing?
A: Generally, shelves are flat packed by air bubble film/ film in standard export cartons. Other packing like wooden box are available to clients’ requirement.
